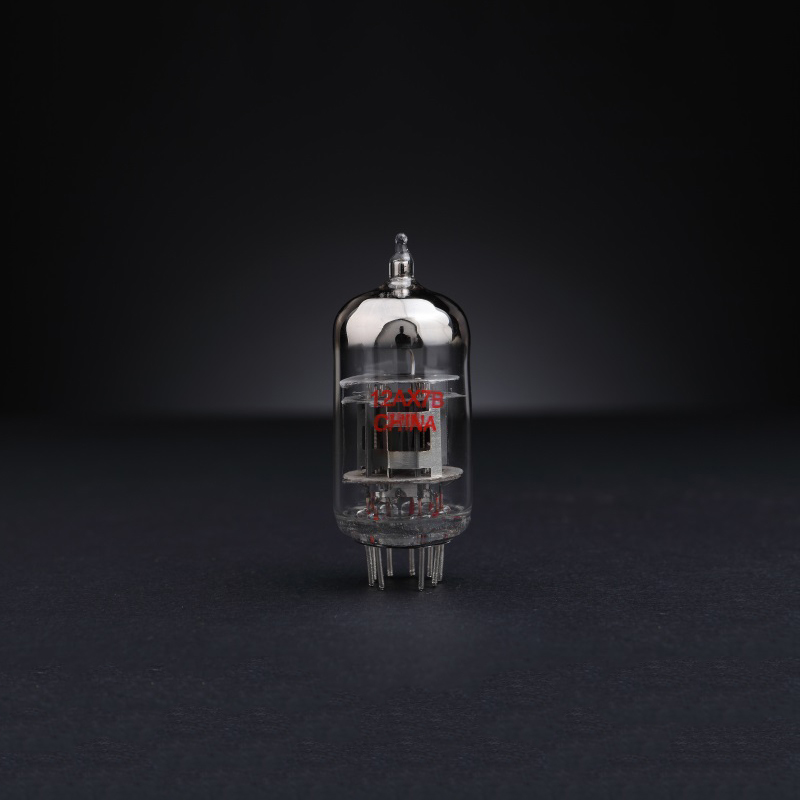

2026 NEW Shuguang Tube 12AX7B(ECC83)Amplifier HIFI Audio Vacuum Tubes

2026 NEW Shuguang Tube 12AX7B(ECC83)Amplifier HIFI Audio Vacuum Tubes

the price is for one piece

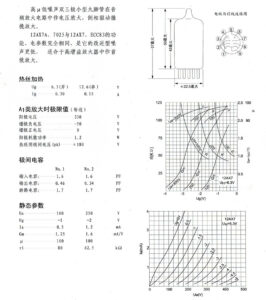

The high-μ, low-noise dual-triode compact nine-pin tube is used in audio amplification circuits for voltage amplification as well as for inverting drive in push-pull amplifiers. The 12AX7B, 7025 and 12AX7, ECC83 have identical functions and electrical parameters; the latter are improved versions with lower noise levels, making them suitable for use as the first stage of amplifiers with high gain.

Heating by a hot wire

Uh…………………………………………………..6.3 (in parallel) 12.6 (in series) V

Ih…………………………………………………….0.30 0.15 A

Limit values for Class A1 amplification (per side)

Anode voltage……………………………………….. 330 V

Gate negative voltage……………………………………..-50 V

Gate positive voltage………………………………………0 V

Anode power dissipation…………………………………..1.2 W

Voltage between the hot wire and the cathode (pk)……………………±180 V

Inter-electrode capacitance

No.1   No.2

Input capacitance………………………………. 1.6 1.6 PF

Output capacitance………………………………. 0.46 0.34 PF

Capacitance across the circuit……………………………….1.7 1.7 PF

Electrostatic parameters

Ua ………………………………………… 100 250 V

Ug ………………………………………… -1 -2 V

Ia …………………………………………0.5 1.2 mA

Gm ………………………………………… 1.25 1.6 mA/V

μ…………………………………………..100 100

ri ……………………………………………80 62.5 KΩ
